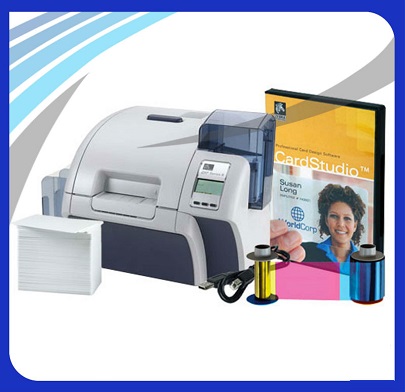

Card Printer ZXP 8
With Zebra’s innovative ZXP Series 8 retransfer card printer line and ZMotif software platform, create on-demand plastic cards with picture-perfect image quality that meets your brand and quality requirements. To achieve this superior image quality, the printer uses image processing algorithms based on Zebra’s photo printer technology. Increase your operational efficiency—without sacrificing image quality—through the printer’s best-in-class throughput, provided by Zebra’s patent-pending simultaneous dual-sided image transfer process. The printer’s modular design provides flexibility to add a variety of encoding options as needed. And its high reliability minimizes your printer maintenance needs and total cost of ownership. In addition, ZXP Series 8 printers include ZMotif XML-based software for easy system integration and faster deployment and return on investment.
Download Attached File:
Benefits
Innovative best-in-class retransfer printer
Fastest print speed in its class provides quicker ROI
Superior photo-like image quality and print resolution
Ability to print and uneven card surfaces such as smart cards
ZMotif software platform for easy integration and application flexibility
Physical Characteristics | |
Dimensions | Height (w/card hoppers): 13.2"/334 mm Width 18.75"/476 mm (w/card hoppers), 30.75"/781 mm (w/card hoppers, w/laminator) Depth: 20.4"/519 mm |
Voltage | Single-phase AC power 100V~240V AC and 50-60 HZ |
Weight (w/o cable) | 27.5 lbs/12.5 kg (printer only); 44 lbs/20 kg (printer, laminator) |
Operating Characteristics | |
Resolution | 304dpi |
Print methods | Thermal transfer |
Print Speed | Max print speed single-side 190 cph Max print speed dual-sided 180 cph |
Memory | 64 MB |
Interfaces Support | USB 2.0 or Built-in 10/100 Ethernet—optional |
Encoding Options & Specifications | Smart card contact station—ISO 7816 Magnetic stripe encoder—ISO 7811 and JIS-II* (high and low coercivity) Combined MIFARE® ISO 14443 (13.56 MHz) and ISO 7816 contact encoder EMV level 1 certified UHF Gen 2 RFID encoder FeliCa contactless encoder Encoding over Ethernet—requires ZBR-PS300 Ethernet-to-USB Device Server |
Supplies Spec. | True Colors i Series Ribbon YMCK 4 panel: 625 images/roll YMCKK 5 panel: 500 images/roll YMCUvK 5 panel: 500 images/roll YMCKI 5 panel: 500 images/roll YMCKKI 6 panel: 415 images/roll YMC 3 panel: 800 images/roll Monochome black: 2500 images/roll True Colors i Series Transfer Film Clear and holographic: 1250 single-sided/650 dual-sided cards/roll True Secure i Series Laminate Linerless & waste-free 1.0 mil top and bottom laminate: 625 images/roll Laminate types: clear top, clear bottom, magnetic stripe, signature, smart card, and holographic wallpaper designs Custom laminates available with holographic images Custom coded laminates available |
Laminator Specifications | Single-or dual-sided lamination option (with dual-sided printer only) 180 cards per hour dual-sided printing and dual-sided lamination GSA FIPS 201 approved (dual-sided lamination) Uses Zebra True Secure i Series laminates only Laminate for the top and bottom sold separately Custom-coded laminates available |
User Environment | |
Storage Temp. | 23º F/-5º C to 131º F/55º C |
Operating Temp. | 59º F/15º C to 95º F/35º C |
