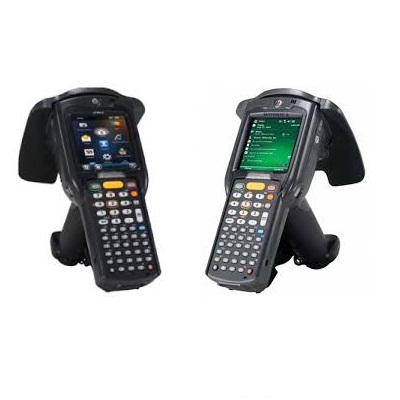

HANDHELD RFID READER MC3190-Z
BUSINESS-CLASS HANDHELD RFID READER
The MC3190-Z builds on with a rugged design and high performance industrial handheld with an advanced, high efficiency RFID reader engine for faster read rates and higher throughput. Add a groundbreaking new orientation-insensitive antenna and the result is a highly versatile device that is at home in customer-facing environments, from retail stores and healthcare facilities to the office
Download Attached File:
Zebra Mobility Architecture eXtensions (MAX) allows Zebra mobile computers to deliver extraordinary value — a truly unprecedented return on investment (ROI) and total cost of ownership (TCO). This unique set of Zebra features turbo charges Zebra mobile computers, driving ease-of-use, ease-of-management, flexibility, modularity, lifecycle and overall system performance to new heights. Features in the MC3190-Z include...
MAX Rugged
With MAX Rugged, you can count on a device built for the most demanding business environments. A minimum of three specifications — industry leading mechanical stress and endurance tests plus environmental sealing — insures dependable performance and maximum lifecycle.
MAX Data Capture
Integrate best-in-class advanced data capture functionality, including: 1-D, 2-D and DPM bar code scanning; signature capture; high resolution image and document capture; RFID and more.
MAX RFID Antenna
Maximize the performance of your RFID solutions with this patented orientation insensitive antenna. The unique combination of linear and circular polarization maximizes read range and coverage area, delivering the extraordinary reliability required to capture tags — even on the most challenging items.
MAX Secure
MAX Secure provides the security features required to ensure secure data transmissions over either the WLAN or the WWAN — including highly sensitive applications in government and public safety.
PHYSICAL CHARACTERISTICS | |
---|---|
Dimensions | 7.6 in. H x 4.7 in. W x 6.4 in. D 19.34 cm H x 11.94 cm W x 16.26 cm |
Weight | 22.93 oz./650 g (including battery, stylus, narrow keypad & strap) |
Display | 3 in. QVGA color display (320 x 320) touchscreen with backlight |
Battery | Li-Ion 4,800 mAh @ 3.7Vdc (2X Battery only) |
Network Connections | RS232; USB (host and client) |
Keypad | 48-key Alpha-Numeric; 28-key Numeric |
Data Capture Options | RFID, 1-D laser scanner and 2-D imager |
PERFORMANCE CHARACTERISTICS | |
---|---|
CPU | Marvell PXA320 @ 624 MHz |
Operating System | Microsoft® Windows Embedded Handheld 6.5.3 |
Memory | 256MB RAM/1GB Flash as shipped, user expandable |
USER ENVIRONMENT | |
---|---|
Drop Spec | Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, Multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G |
Tumble Spec | 500 1.64 ft./.5 m tumbles (1,000 drops) at room temperature; meets and exceeds MIL-STD 810F |
Operating Temp | 14° F to 122° F/-10° C to 50° C |
Storage Temp | -22°F to 160° F/-30°C to 70°C |
Sealing | IP54; Meets and exceeds MIL-STD 810F |
Humidity | 5-95% non-condensing |
Electrostatic Discharge (ESD) | +/-15kv VDC air discharge, +/-8kv VDC direct discharge, +/-8kv indirect discharge |
Ambient Lighting Tolerance | Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux) |
WIRELESS LAN VOICE AND DATA COMMUNICATIONS | |
---|---|
Radio | Tri-mode IEEE® 802.11a/b/g |
Security | WPA2 (Personal or Enterprise); 802.1x; EAPTLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5); PEAP (TLS, MSCHAPv2, EAPGTC); LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC); CCXv4 certified; support for IPv6; FIPS140-2 Certified |
Data Rates Supported | 802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps |
VoIP-Ready | Optional (region dependent) |
WIRELESS PAN DATA AND VOICE COMMUNICATIONS | |
---|---|
Bluetooth® | Region dependent |
PERIPHERALS AND ACCESSORIES | |
---|---|
Cradles | Single-slot USB/RS232 charging cradle with spare battery well |
Chargers | Four-slot battery charger; adaptor for universal battery charger |
Printers | Supports Zebra-approved printers |
Other Accessories | Charging cables, magnetic stripe reader |
GEOGRAPHIC AVAILABILITY | |
---|---|
Supported regions based on European RFID frequencies (ETSI EN 302-208) and US RFID frequencies* |
RFID | |
---|---|
RFID Power Output | EU: 1 watt ERP for Europe US: 1 watt EIRP |
RFID Antenna Type | Integrated Orientation Insensitive |
Frequency Range | EU: 865-868 MHz; US: 902-928 MHz |
Standards Supported | EPC Gen 2 DRM (DRM compliant up to 0.5W) |
REGULATORY | |
---|---|
EMI/EMC | FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2, EN 301 489-1, EN 301 489-17, EN 301 489-3 |
Electrical Safety | UL 60950-1, CSA C22.2 No. 60950-1, IEC 60950-1 |
RF Exposure | EU: EN 50360; EN 50364 USA: FCC Part 2, FCC OET Bulletin 65 Supplement C Canada: RSS-102 Japan: ARIB STD T56 Australia: Radiocommunications Standard 2003 |
WLAN, Bluetooth and RFID | EU: EN 300 328, EN 301 893 : EN 302 208 US: FCC Part 15.247, 15.407 Canada: RSS-210 Australia: AS/NZS 4268 |
Laser Safety | A21CFR1040.10, IEC/EN 60825-1 |
Model Numbers for Regulatory Certifications: MC319ZUS, MC319ZEU |
WARRANTY | |
---|---|
The MC3190-Z is warranted against defects in workmanship and materials for a period of 12 months from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. |
RECOMMENDED SERVICES | |
---|---|
Customer Services: | Service from the Start with Comprehensive Coverage |
1 - LED lighting with high AC ripple content can impact scanning performance |
