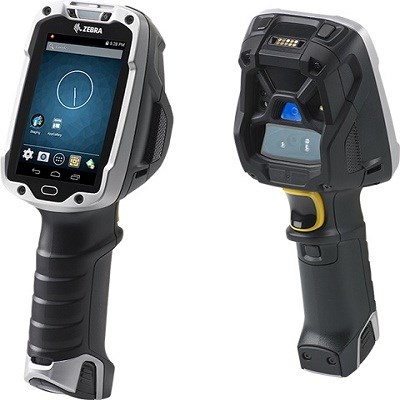

MOBILE COMPUTER Zebra TC8000

From the back of the warehouse to the retail floor, productivity has never been more important. Which is why we put our top engineers to task designing the most efficient, feature-loaded mobile computer possible. With a breakthrough ergonomic design and an extensive list of productivity-enhancing innovations, the TC8000 Touch Mobile Computer adds an extra hour of productivity per worker to the workday. Something your customers are going to be really happy with

Download Attached File:

LESS WEIGHT, MORE UPCS

Up to 33% lighter than traditional models to reduce muscle fatigue among workers.  Sometimes less is more.

PRODUCTIVITY FROM A NEW ANGLE

Designed to face the user while scanning, the larger screen eliminates the need to tilt and verify each scan, increasing efficiency on every scan.

LOSE THE KEYS, GAIN THE SPEED

The all-touch keyboard allows users to type up to

40% faster with

60% fewer errors

compared to traditional push-button keyboards.

NO OFF DAYS AND NO OFF MINUTES

Change to a charged battery quickly and seamlessly without powering down the device.

WORKS HOW YOU WANT IT

Scan quickly and effectively in any situation.  The TC8000 allows for:

MOBILITY DNA

Connect every strand of your mobility platform for a simplified, intergrated solution with Mobility DNA — our suite of applications, development tools and administration utilities for Zebra mobile computers.

WHAT WOULD YOUR WORKERS DO WITH AN EXTRA HOUR PER DAY?

Everything.

It’s the ground-breaking all new warehouse mobile computer designed to deliver revolutionary productivity increases in the warehouse. In fact, on average, it saves 14%*per worker versus traditional form factors – it’s like gaining an extra hour of productivity, per worker, per day.

And it’s the only device on the market that simplifies it all — how your workers physically use the device and interact with your warehouse application.

TC8000 Specifications Chart

PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS

Dimensions 9.17 in. L x 2.99 in. W x 2.52 in. D

233 mm L x 76 mm W x 64 mm D

Weight Standard: 17.2 oz./490 g; Premium: 17.6 oz./500 g

Display 800 x 480 pixels; 4.0 in. diagonal; transflective LCD

display; 16.7 Million (24-bit) color support; 400 NITs

Touch Panel Multi-touch projected capacitive; fingertip (bare or

gloved) input; conductive stylus supported (sold

separately); Corning® Gorilla® Glass

Power PowerPrecision+ Lithium ion 6700 mAh with

hot swap battery backup

Notifications Audible tone, multi-color LEDs, vibration

Keypad On-screen keypad

Voice and Audio Dual speakers, Bluetooth wireless headset support

Expansion USB, Serial for ISV developers (optional)

PERFORMANCE CHARACTERISTICS

CPU Dual core 1.7 GHz processor

Operating

System

Android AOSP 5.1.x (Lollipop) with Mobility

Extensions (Mx)

Memory Standard model: 1GB RAM/4 GB Flash pSLC

Premium model: 1 GB RAM/8 GB Flash pSLC

Premium model optional: 2 GB RAM/16 GB Flash pSLC

Storage SDXC compliant micro SD card slot

App Development EMDK available through Zebra Support Central Web site

DATA CAPTURE

Scanning

Options

SE965: 1D standard range scan engine

SE4750 SR or MR: Standard or medium range

omnidirectional 1D/2D imaging engine

SE4850 ER: Extended range 1D/2D imaging engine

Camera 8MP autofocus, f/2.4 aperture (optional)

NFC Multi-protocol NFC (optional)

ZEBRA INTERACTIVE SENSOR TECHNOLOGY

Light Sensor Automatically adjusts display backlight

Motion Sensor 3-axis accelerometer; 3-axis gyroscope (optional)

Navigation Digital compass (optional)

Proximity Sensor for auto hands free scanning

USER ENVIRONMENT

Operating Temp. -4° F to 122° F/-20° C to 50° C

Storage Temp. -40° F to 158° F/-40° C to 70° C

Humidity 5% - 95% non condensing (condensing resistant optional)

Drop Spec. Multiple 8 ft./2.4 m drop to concrete at room temperature

per MIL-STD 810G ; multiple 6 ft./1.8 m drop to concrete

across full operating temperature range

Tumble Spec. 2,000 3.28 ft./1 m tumbles

Sealing IP65

Vibration Sine 5-2000 Hz, 4g peak, 1 hour per axis; random 20-

2000 Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis

Thermal Shock -40° F to 158° F/-40° C to 70° C rapid transition
Scanner Window Corning® Gorilla® Glass
Electrostatic
Discharge (ESD)
±20kVdc air discharge; ±10kVdc direct discharge;
±10kVdc indirect discharge
WIRELESS LAN
Radio IEEE 802.11a/b/g/n/d/h/i
Data Rates 5GHz: 802.11a/n — up to 150 Mbps; 2.4GHz: 802.11b/g/n
— up to 72.2 Mbps
Operating
Channels
Chan 36 - 165 (5180 - 5825 MHz); Chan 1 - 13 (2412 -
2472 MHz); Actual operating channels/frequencies
depend on regulatory rules and certification agency
Security and
Encryption
WEP, WPA – TKIP, WPA2- TKIP, WPA2-TKIP AES EAP
TTLS, PAP, MSCHAP, MSCHAP v2, PEAPv0-MSCHAPv2,
PEAPv1- EAP-GTC, EAP-TLS, EAP-FAST, LEAP
Multimedia Wi-Fi Multimedia™ (WMM)
Certifications 802.11n, WMM, WMM-PS, CCXv4, Wifi Direct,
Wi-FI Display (Miracast)
Fast Roam PMKID caching, Cisco CCKM, OKC, 802.11r
Network
Connections
Bluetooth; USB 2.0 OTG Host docking interface; 802.11r
and 802.11k for enterprise voice roaming included
WIRELESS PAN
Bluetooth Bluetooth 4.0 (Bluetooth® Smart technology)
