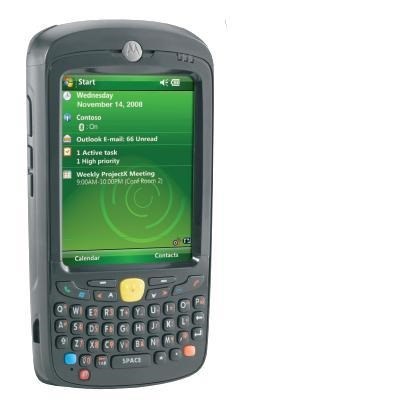

Mobile Computing MC55A0
Give the managers and task workers everything they need to take instant action anywhere. Pure business on the inside and smart styling on the outside, the MC55A0 rugged enterprise mobile computer lets your workers access business applications, scan bar codes, snap a photo, view a video and place a private or push-to-talk call to virtually anyone in your facility – all with a single device. The sleek lightweight design is not only pocketable, it is at home in front of customers and patients. And government grade FIPS 140-2 security keeps your most sensitive data safe and secure.
Download Attached File:
Features and Benefits
HIGH-POWERED PLATFORM
Powerful microprocessor designed for mobility
The Marvell PXA320 @ 806 MHz provides best-in-class application performance coupled with ubiquitous mobility inside the enterprise – even on the most demanding multi-media applications
The memory to support any application
256MB RAM/1GB Flash and a user accessible microSD card slot with support up to 32GB provide the memory space required to enable robust performance for database and other processing intensive applications
The most advanced mobile operating system for the enterprise
Microsoft's Windows 6.5 Mobile Edition increases interoperability with existing enterprise infrastructure; enhances security features; provides a more flexible development platform; improves mobile messaging collaboration
Protects your application investments
Support for Motorola's Enterprise Mobility Developer Kit (EMDK) APIs preserves existing application investments by enabling easy and cost-effective porting of applications from other Motorola mobile computers
ADVANCED WIRELESS CONNECTIVITY
Works on virtually any wireless LAN
The 802.11a/b/g tri-mode radio connects to both 2.4GHz and 5GHz WLANs for cost-effective voice and data connectivity in the office and hot spots; 802.11a (5GHz band) support enables segmentation of voice traffic to ensure voice quality
The most advanced Bluetooth functionality
Bluetooth v2.1 with EDR provides a wireless connection to more device types, including modems, printers, headsets and more; simplifies pairing; improves security; reduces power consumption; supports either Microsoft or Stonestreet stacks
GOVERNMENT GRADE SECURITY OVER VIRTUALLY ANY WLAN
Make sure only authorized users access your devices, your data and your network
Bring wired-line security to your wireless communications without impacting wireless performance through a multitude of security features, including: native FIPS 140-2 Level 1 certification; support for all the latest encryption and authentication protocols; compatibility with Motorola's Mobile Security Suite for device-level protection (device level firewall, intrusion prevention, enforced authentication, data encryption and integrity monitoring protect the data that is resident on and in transit to and from your MC55A0 devices); and compatibility with Motorola Mobile Virtual Private Networks (MVPNs)
THE MOST RUGGED DESIGN
Motorola MAX Rugged for industry leading rugged design – and reliability
Drop (impact) test: multiple 6 ft./1.8 m drops per MIL-STD 810G
Tumble (endurance) test: reliable operation after 1,000 1.5 ft./0.5 m consecutive tumbles (2,000 hits) in Motorola's tumble drum
IP64 sealing: complete protection against dust and splashing liquids
Patented Monocoque unibody housing: greatly improves structural stability and ability to handle the twisting common in a fall or bump
Patented industrial-grade connector: improves the reliability and durability of the accessory point of interface
Improved shock absorption for internal components: a rigid yet lightweight magnesium frame encases the main circuit board and all electronics
Rugged display construction: space between display and touchscreen helps prevent damage to the display
AUTOMATE THE CAPTURE OF VIRTUALLY ANY TYPE OF DATA
Motorola MAX Data Capture for advanced high-performance multi-mode data capture
Choose one of four bar code scanning options that can read even damaged and poor quality codes:
1D Scanners
SE960: High performance 1D scanning – adaptive scanning maximizes the range and enables scanning of codes that are damaged or underneath shrinkwrap
2D Imagers
Motorola's SE4500 latest generation 2D imager offers unparalleled laser-like performance on both 1D and 2D bar codes and omnidirectional rapid-fire easy scanning – no need to align bar code and aiming pattern. Choose one of three options:
SE4500-SR: Optimized for low/medium density standard range scanning of 1D/2D bar codes.
SE4500-DL: Optimized for medium to high density 1D/2D bar codes as well as the specialized PDF bar codes found on drivers licenses and other identification cards – ideal for gate access and border crossings for identity management; patient wristbands and unit doses in healthcare point of care applications; and the high density codes common in the electronics industry.
SE4500-HD: Optimized for very high-density 1D/2D codes and the direct part marks common in manufacturing.
Add a 3.2 MP auto-focus flash-enabled digital color camera with user-controllable flash to capture photos, videos, documents with legible fine print and bar codes (for intermittent scanning applications)
BUSINESS-CLASS MOTION SENSING
Motorola MAX Sensor for the intelligence to sense – and act – on motion
Automatically rotates screen to match; device orientation automatically reverts to sleep mode when not in use to preserve battery power; landscape mode improves the display of data-intensive applications; enables utilization of sensor data in custom applications
ADVANCED ERGONOMICS
Advanced sleek design for ease of use and user comfort
Specifically designed for one-handed operation – data entry is easy regardless of hand size with minimal movement
Crystal clear text and graphics with Motorola MAX Display
3.5 inch extra-crisp PenTile high-resolution color VGA touchscreen display is easy to view in virtually any lighting condition – indoors and outside; additional white pixel improves contrast; energy-efficient engineering delivers twice the brightness at half the power of typical displays
A family of keypads for global data entry flexibility
Numeric, QWERTY, AZERTY, QWERTZ and NAV PIM support a wide range of applications all around the world
PRESERVE EXISTING ACCESSORY INVESTMENTS
Backwards compatibility with all MC55 accessories
Upgrade to the latest mobile technology advancements while preserving your existing accessory investments
EASY CENTRALIZED MANAGEMENT
Easy global remote management of your devices – and their accessories
Compatibility with Motorola's Mobility Services Platform (MSP) enables comprehensive and flexible centralized management of Motorola and non-Motorola mobile computers and peripherals, anywhere in the world, all from a single console
END-TO-END SUPPORT SERVICES
Increase uptime and reduce support costs with all-inclusive support plan
Optional Service from the Start with Comprehensive Coverage covers normal wear and tear as well as internal and external components damaged through accidental breakage for both device and select accessories
Physical Characteristics | |
Dimensions | With rechargeable 2400 mAh Lithium Ion battery: 5.78 in. L x 3.03 in. W x 1.06 in. D 147 mm L x 77 mm W x 27 mm D |
Weight | 11.1 oz./315 g (with rechargeable 2400 mAh Lithium Ion battery) |
Display | PenTile® 3.5 in Color VGA, super bright 650+ NITS |
Keypad Options | Numeric, QWER TY, AZER TY, QWER TZ and NAV PIM |
Expansion Slot | Micro SD slot (maximum 32GB) |
Audio | Speaker, microphone, receiver (for handset mode use) and Bluetooth audio headsets |
Performance Characteristics | |
CPU | Marvell™ PXA 320 @ 806 MHz processor |
Operating System: | Operating System Microsoft® Windows Mobile® 6.5 Classic |
Memory (RAM/ROM): | Memory 256 MB RAM/1 GB Flash |
Power | Standard Rechargeable Lithium Ion 3.7V, 2400mAh Smart Battery. Extended Battery Rechargeable Lithium Ion 3.7V, 3600mAh Smart Battery (Option) Backup Battery Ni-MH battery (rechargeable) 18mAh 2.4V |
Data Capture | Multiple configurations available: 1D SE960 laser scanner; 2D SE4500-SR imager; 2D SE4500-HD imager; 2D SE4500-DL imager; 3.2 megapixel color camera option available |
User Environment | |
Drop Specification: | Drop Spec Multiple 6 ft./1.8 m drops per MIL-STD 810G |
Tumble Specification | 1000 1.6 ft./0.5 m tumbles (equivalent to 2,000 hits) per IE C tumble specifications |
Operating Temp. | 14° F to 122° F/-10° C to 50° C |
Storage Temp. | -40° F to 158° F/-40° C to 70° C |
Sealing | IP64 per IE C sealing specifications |
Humidity | Humidity 95% non-condensing |
ESD | 15KV Air; 8KV Touch |
Network Communication | |
I/O | USB 1.1 Host and Client |
Pheripherals and Accessories (Options) | |
Communication and Battery Chargers/Cradles | Charge only cable; auto charge cable; USB charge/sync cable; 4 slot battery charger toaster; 4-slot Ethernet cradle; 4-slot charge only cradle; single slot USB cradle; vehicle holder using auto charge cable; vehicle cradle with charging capabilities |
Soft Goods | Rigid and soft case holsters, Bluetooth headsets |
Wireless Data Communications | |
Wireless LAN | Tri-mode IEEE ® 802.11a/b/g |
Data Rates Supported | 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps |
Security Protocol | WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, LEAP, CCXv4 certified; FIPS 140-2 certified |
WPAN (Bluetooth Support) | Class II , v 2.1 Enhanced Data Rate (EDR); integrated antenna |
Voice Communication | Voice-over-IP ready, Wi-Fi™-certified, IEEE 802.11a/b/g direct sequence wireless LAN, Wi-Fi Multimedia™ (WMM), Motorola Voice Quality Manager (VQM) |
Regulatory | |
Electrical Safety | Certified to UL/cUL 60950-1, IE C/EN60950-1 |
EMI/RFI | North America: FCC Part 15, Class B Canada: ICES 003 Class B EU: EN55022 Class B, EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 60601-1-2 |
Laser Safety | IE C/Class 2/FDA ll in accordance with IE C60825-1/EN 60825-1 |
