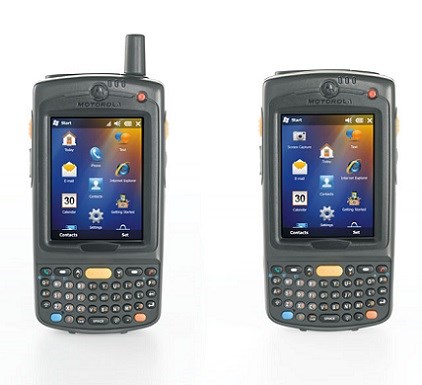

Mobile Computing MC75A0
Make healthcare quality and patient safety to the next level with the MC75A0-HC. Easy to carry and easy to use, the MC75A0-HC is designed for life inside the hospital, able to endure everyday drops and bumps as well as disinfecting after each patient. And robust wireless application performance and wireless connectivity options allows healthcare givers to access patient records, accurately administer medication, monitor patient vital signs, place lab and pharmacy orders, view test results and more — all in just seconds anywhere inside the facility.
Download Attached File:
Features and Benefits
Rugged, lightweight design
Meets and exceeds applicable MIL-STD and IEC specifications for drop, tumble and sealing
Powerful microprocessor
Maximizes mobility, giving desktop-like performance with minimal power use
Increased operability
Enabled through Windows® Mobile 6.5 with advanced security, a flexible development platform and improved mobile messaging
The MC75A0-HC is a LAN only device
WLAN and VoIP support
Provides cost-effective connectivity in offices and in hot spots
WPAN and IrDA
Helps connect wirelessly to modems, printers and headsets, as well as medical equipment and fax machines
High definition VGA display
Supports high-resolution images such as high-resolution photographs, video and documents
Backwards compatible with MC70, MC75 and MC75A accessories, provides investment protection
Keypad options
Includes QWERTY – Numeric, QWERTZ and AZERTY keypads available through custom product requests
Robust memory space
Supports 256MB RAM; 1GB Flash
Options
3.5G LAN only
FIPS 140-2 Certification and Support
Compliance with the most stringent industry security regulations, including sensitive government applications.
Physical Characteristics | ||
Dimension | 6 in. L x 3.3 in. W x 1.7 in D15.24 cm L x 8.4 cm W x 4.4 cm D | |
Network connection | Ethernet (via cradle); full-speed USB 1.1 host or client; RS-232; Infra-red (IrDA) port for connection to printers and other devices | |
Backlight | LED backlight | |
Expansion slot | microSD slot with SDHC Support (maximum 32GB) | |
Display | PenTile® 3.5 in. color VGA (640x480) super bright 650+ NITS (luminous) | |
Keyboard Option | QWERTY; Numeric | |
Weight | 14 oz./398 g (including standard battery) | |
Battery | Rechargeable Lithium Ion 3.7V, 3600 mAh Smart Battery | |
Performance Characteristics | ||
CPU | PXA320 @ 806 MHz processor | |
Operating System | Microsoft® Windows Mobile® 6.5 Classic and Professional | |
Memory | 256MB RAM; 1GB Flash | |
Interface | RS-232, USB 1.1 | |
User Environment | ||
Tumble Specification | 1,000 1.6 ft./.5 m tumbles (2,000 drops); per applicable IEC tumble specifications | |
Operationg Temp. | 14° F to 122° F/-10° C to 50° C | |
Storage Temp. | -40° F to 158° F/-40° C to 70° C | |
Sealing | IP54 per applicable IEC sealing specifications | |
Humidity | 95% non-condensing | |
ESD | Electrostatic ±15kV air discharge, ±8kV direct discharge | |
Wireless Data Communications | ||
WLAN | Tri-mode IEEE® 802.11a/b/g | |
RF Operating Channel | Chan 8-165 (5040 – 5825 MHz) Chan 1-13 (2412-2472 MHz) Chan 14 (2484 MHz) Japan only Chan 8-169 (4920-4980 MHz) Actual operating channels/frequencies depend on regulatory rules and certification agency | |
Voice Communications | Integrated Voice-over-IP Wi-Fi™-certified, IEEE 802.11a/b/g direct sequence wireless LAN | |
Security Protocol | WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP,PEAP-TLS, PEAP (MS-CHAP v2), AES, LEAP, CCXv4 certified; FIPS 140-2 certified | |
WPAN (Bluetooth Support) | Class II, v2.1 with Enhanced Data Rate (EDR) integrated antenna | |
Regulatory | ||
Environmental | RoHS-compliant | |
EMI/RFI |
| |
Laser Safety | IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1 |
