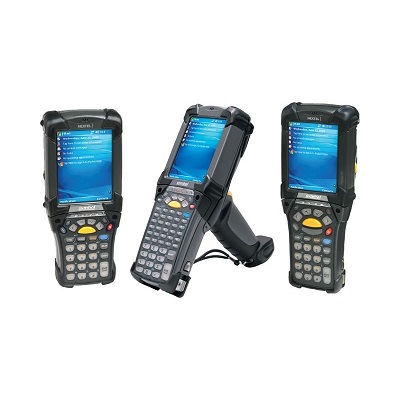

Mobile Computing MC9200
The MC9200 rugged mobile computer, the next generation of the industry-leading gold standard for mobility, has evolved to meet changing business needs, bringing you the same signature rugged design, best-in-class barcode scanning and dependable operation. Now, with the power to run applications with highly-intuitive interfaces, the MC9200 will further simplify processes and increase worker productivity in your toughest environments.
Download Attached File:
The power you need to support any application
A dual core 1 GHz processor, 2GB of Flash memory, up to 32GB of additional SD memory and Microsoft's advanced mobile operating systems provide the power to run complex ERP applications — simultaneously.
High-speed 802.11a/b/g/n Wi-Fi
Support for the fastest Wi-Fi connection available today — 802.11n — provides your workers with the best possible wireless voice and data experience.
Proven rugged construction, ready for your most challenging environments
Every day, the MC9000 Series devices deliver reliable performance, despite everyday drops on concrete, subzero cold, extreme heat, dust, spills and more.
Government-grade security
Government-grade FIPS 140-2 Level 1 certification secures Wi-Fi and Bluetooth wireless communications, without impacting device or application performance.
Six advanced scan engines — the most scan engine options
No matter what type of barcodes are in use in your facility, there is a scan engine option that is optimized for rapid-fire capture of 1-D, 2-D, driver’s license, DPM codes and more — even if the codes are dirty, damaged or poorly printed.
Six interchangeable keypads for superior customization
Choose the keypad that makes data entry as easy as possible for any type of application.
Communications
WPAN (Bluetooth Support)
Bluetooth 2.1 with EDR
Frequency range1
802.11a – 5.0 GHz, 802.11b - 2.4 GHz, 802.11g - 2.4 GHz, 2.4 or 5.0 Ghz for 802.11n, 5GHz
Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps, 802.11n: up to 65 Mbps
Security
WPA2 Enterprise, 802.1x;
EAP-TLS; TTLS (CHAP, MS-CHAP, MS-CHAPv2, PAP or MD5);
PEAP (TLS, MSCHAPv2, EAP-GTC);
LEAP, EAP-FAST (TLS, MS-CHAPv2, EAP-GTC), WPA2/AES, CCX v4, FIPS 140-2 and IPv6
Antenna
Internal
WLAN
802.11a/b/g/n
Performance characteristics
Operating system (OS)
Microsoft Windows Embedded Compact CE 7.0, Microsoft® Windows Embedded Handheld 6.5.3
Expansion
User accessible 32GB SDHC card slot
Data capture options
SE965: 1-D standard range scan engine; view ambient lighting information, located in User Environment
SE1524-ER: 1-D extended range scan engine reads up to 45 ft./13.72 m away; view ambient lighting information, located in User Environment
SE4500: Omnidirectional 1-D/2-D imaging engine
SE4600: Extended range omnidirectional 1-D/2-D imaging engine reads as far as 30 ft./9.14 m
SE4500-DL: 1-D/2-D DL imaging engine reads 1-D, 2-D and PDF codes on driver’s licenses
SE4500-HD: 1-D/2-D DPM imaging engine reads a wide variety of DPM marks on metal, plastic and glass surfaces
App development
PSDK and EMDK available through Zebra Support Portal
Memory
512MB/2GB standard; 1GB/2GB (premium models only)
Processor (CPU)
Dual core 1GHz OMAP 4 processor
Physical characteristics
Scanner exit window
Gorilla™ Glass
RFID Tag
Integrated UHF Gen2 tag (premium models only)
Keyboard
28-, 43- and 53-key; Terminal Emulation (5250, 3270, VT)
Dimensions (HxWxD)
9.1 in. L x 3.6 in. W x 7.6 in. H
23.1 cm L x 9.1 cm W x 19.3 cm H
IST
Sensor technology (premium models only)
Display type
3.7 in VGA resolution; color
Weight
27 oz./765 g (includes battery)
Power
Extended capacity battery
Removable, rechargeable 7.2 volt Lithium Ion 2200 mAh battery pack, 15.8 watt hours
Regulatory specifications
LED Safety
IEC/EN60825-1 and IEC/EN62471
RF exposure
USA: FCC Part 2, FCC OET Bulletin 65 Supplement C; Canada: RSS-102; EU: EN62311, EN50371
Environmental
RoHS-compliant
EMI/RFI
USA: FCC Part 15; Canada: RSS-210, ICES 003 Class B; EU: EN 301 489-1, EN 301 489-17, EN55022 Class B, EN55024
WLAN and Bluetooth (PAN)
USA: FCC Part 15.247, 15.407; Canada: RSS-210 EU: EN 300 328, EN 301 893
Electrical safety
CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, Certified to UL60950-1
User environment
Environmental sealing
IP64 (electronic enclosure, display, keypad)
Drop specification
Multiple drops to concrete: 6 ft./1.8 m across the operating temperature range; meets and exceeds MIL-STD 810G
Storage temperature
-40° F to 158° F/-40° C to 70° C
Operating temperature
-4° to 122° F/-20° to 50° C
Tumble specifications
2, 000 3.28 ft./1 m tumbles at room temperature per IEC Tumble Specification
Humidity
5% to 95% non condensing (Condensation Resistant Configurations Available)
Charging temperature
32° to 104° F/0° to 40° C
