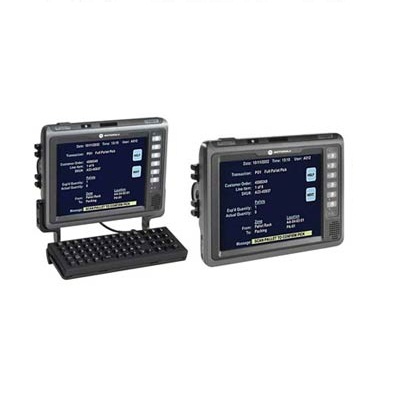

VEHICLE-MOUNTED COMPUTER Motorola VC70N0

The VC70N0 is the right-sized device for all your material-handling vehicles. Its compact design improves visibility and safety while still providing a large high-resolution display for all the information operators need to improve productivity and task accuracy, in almost any lighting condition.

The powerful VC70N0 supports traditional Telnet to modern browser-based graphic-rich applications, covering receiving, put-away, replenishment, picking, packing and shipping. You get the flexibility to add the options needed to maximize efficiency — including corded or cordless barcode scanners, keyboards and a variety of voice capabilities.

Download Attached File:

vc70n0_spec_sheet.pdf

Our most rugged vehicle-mounted mobile computer
Designed for use in extreme warehouse environments, with a dust-and-water-tight IP66 sealing, rugged aluminum construction, freezer rating, sealed connectors and extreme shock and vibration testing.

Right-sized for all your material handling vehicles
Compact design improves operator visibility and safety while providing a large screen with plenty of room to display information operators need to improve task productivity and accuracy.

The power you need to support graphics-rich applications
A dual core 1GHz processor, 2GB of Flash memory and a user-accessible SD card slot that supports up to 32GB provide best-in-class performance for demanding applications as well as OS-agnostic applications created with Zebra’s RhoMobile Suite.

High-speed Wi-Fi wireless connectivity
802.11a/b/g/n supports today’s fastest available WLAN connections for superior application performance — plus easy integration with practically any WLAN.

Standard display
10.4 in. color XGA LCD; 1024x768, 600 NIT LED backlit

Data capture
Scanner Options: DS3508 Corded Scanner; DS3578 Cordless Scanner

Battery
Integrated dual-function battery; provides up to 30 minute session persistence during forklift battery swap and up to 72 hours RAM backup

Power supply
External IP66 sealed 9-60V DC/DC converter for all engines with 12V, 24V, 36V or 48V truck battery; external 100-240VAC power supply for AC-powered carts.

Antenna
Internal WLAN diversity antenna; optional external WLANantenna with diversity; internal Bluetooth antenna

Keypad
3 keyboards, all backlit with IP66 sealing and tactile feedback: QWERTY or AZERTY, 65-key with function keys F1-F24; side-mounted 21-key numeric/functional keypad

Touchscreen
Resistive touch; optional display defroster

Weight
4.3 kg / 9.4 lb

Dimensions
291 mm L x 225.4 mm W x 60 mm D / 11.5 in. L x 8.9 in. W x 2.4 in. D

Product flammability
IEC UL94-V0

Electrical safety
UL/cUL/IEC/EN 60950-1 Indoor use and UL/cUL/IEC/EN 60950-22 Outdoor use
WLAN and Bluetooth
USA: FCC Part 15.247, 15.407
Canada: RSS-210
EU: EN 300 328, EN 301 893
AU/NZ: AS/NZS 4268

EMI/RFI
North America: FCC Part 15, Class B; Canada: ICES 003 Class B; EU: EN55022, EN 301 489-1, EN 301 489-17
Environmental
RoHS/WEEE compliant

Operating system
Windows Embedded Compact 7 (WEC 7)

Memory
512MB SDRAM and 2GB Flash
Terminal emulation
Wavelink Terminal Emulation 3270, 5250, VT100, VT220; pre-loaded and pre-licensed.

CPU
TI OMAP 4430, Dual Core @ 1GHz
Audio
Built-in front-mounted 2W speaker; optional external 13W speaker and external PTT microphone

Expansion slot
microSD up to 32GB SDHC Class 10; user accessible

Integrated sensors
Motion, humidity, temperature, ambient light, ignition

Altitude
15, 000 ft./4, 572 m above sea level
Solar radiation
IEC 68-2-5 Procedure A for 3 days

Salt fog
MIL-STD-810F (8 hours of 5% solution at 35° C)
Thermal shock
-40° F to +158° F/-40° C to +70° C

Mechanical shock
MIL-STD 810F 516.5, Procedure 1 – Functional
Electrostatic discharge (ESD)
±15kV air discharge, ±8kV direct discharge

Humidity
5% to 95% condensing; integrated accessible and field-replaceable desiccant
Vibration
MIL-STD 810F, Method 514.5 - Functional

Environmental sealing
IP66
Storage temperature
-40° to 158° F/-40° to 70° C

Operating temperature
-22° to 122° F/-30° to 50° C
