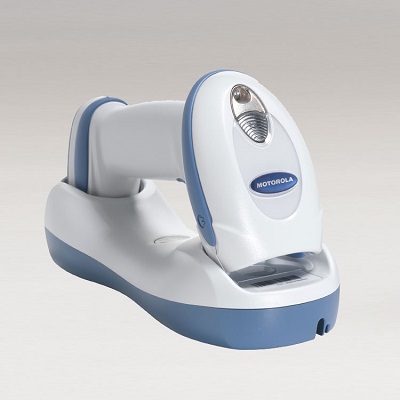

Barcode Scanner DS6878-HC
Prevent medical errors, improve patient safety and increase caregiver productivity. The DS6878-HC cordless imager from Motorola enables hospitals to automate data capture, improve data accuracy, increase productivity and streamline everyday processes in patient rooms, admitting, laboratories and the pharmacy. Its matchless feature set meets the unique requirements of healthcare facilities. An intuitive and ergonomic design combines with dependable and rapid capture of bar codes and other images, allowing caregivers to remain focused on the patient — not the technology. The DS6878-HC is compatible with popular Bedside Meds Administration software including Cerner, Epic, Siemens, Eclipsys and Meditech
Download Attached File:
Features and Benefits
Designed for deployment on a computer or workstation on wheels (COW or WOW)
USB charging capability eliminates a power supply and the typical cable management headaches normally associated with mounting a cordless scanner to a medical cart, computer cart or workstation (COW or WOW); horizontal or vertical installation provides the flexibility to keep the work surface clear while ensuring that the scanner is always in easy reach and charging
Disinfectant-ready
IP43 sealing and a specially designed plastic housing allow safe wipe-down and cleansing with a wide variety of harsh chemicals (See Specification Sheet for approved agents and cleansers)
Lightweight ergonomic design
Easy to hold regardless of hand size; reduces fatigue; enables all day scanning comfort to protect productivity in scan-intensive applications
Superior durability
Offers Motorola’s best-in-class drop specification — the ability to survive 6 ft./1.8m drops to concrete — and IP43 sealing, ensuring reliable operation in spite of everyday spills, drops and bumps
Government grade security with Motorola MAX Secure
FIPS 140-2 certification enables compliance with the most stringent industry security regulations, including HIPAA, PCI and requirements for sensitive government applications (requires FIPS configuration scanner and CR0078-P base)
Comprehensive advanced data capture
Captures 1D and 2D bar codes, signatures, documents such as drivers licenses and insurance cards, facial images for identification, video footage and more; eliminates the need to purchase multiple types of devices; supports the creation and maintenance of electronic medical records (EMRs)
Superior high-performance scanning on all bar codes
The integrated revolutionary Motorola SE4500 imager eliminates the performance degradation common in 2D scanning, delivering: laser-like performance on both 1D and 2D codes; rapid and accurate capture of even poor quality and damaged bar codes; and full omnidirectional scanning, which eliminates the need to precisely align bar code and imager, improves ergonomics and protects productivity
Bluetooth® v2.1 with EDR
Provides a secure wireless connection to the scanner base station for cordless convenience and safety
RSM (Remote Scanner Management) ready
Reduces total cost of ownership by enabling remote, network-based device management of all devices in all locations
Supports 123Scan2 scanner configuration tool
Enables rapid and easy customized set-up through a free, wizard-based PC software tool
Physical Characteristics | |
Dimensions | Dimensions Scanner: 7.3 in. H x 3.85 in. L x 2.7 in. W/ 18.5 cm H x 9.7 cm L x 6.9 cm W Base-mounted vertically: 8.35 in. H x 3.4 in. W x 2 in. D/ 21.1 cm H x 8.6 cm W x 5 cm D Base-mounted horizontally: 2.0 in. H x 8.35 in. L x 3.4 in. W/ 5 cm H x 21.1 cm L x 8.6 cm W |
Voltage and Current (CR0078 Base) | Voltage Charging/Non Charging: Typical Current: 5 +/-10% VDC 700 mA/260 mA External power: 5 +/-10% VDC 490 mA/260 mA with host power through cable |
Color | Healthcare White |
Weight | Weight Scanner: 8.4 oz./238 g (typical) CR0078-S Base: 6.4 oz./183 g (typical) |
Operating Characteristics | |
Light Source | Aiming Pattern: 655 +/- 10 nm laser diode Illumination: 625 +/- 5 nm LED |
Roll | +/- 360o |
Pitch | +/- 60o |
Yaw | +/- 60o |
Decode Capability | 1-D: UPC/EAN (UPCA/UPCE/UPCE1/EAN-8-EAN-13/JAN-8/JAN13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code, Code 39 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, Code 11 (standard, Matrix 2 of 5), MSI Plessey, I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5 IATA , Chinese 2 of 5) GS1 Databar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse), Base 32 (Italian Pharmacode) PDF417 (and Variants): PDF417, microPDF417, Composite Codes (CC-A, CC-B, CC-C) Postal U.S. Postnet and Planet, U.K., Japan, Australian, Netherlands KIX code, Royal Mail 4 State Customer, UPU ICS 4 State Postal, USPS 4CB 2-D: TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse and Micro) |
Interfaces Supported | RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh), IBM 468x/469x, keyboard wedge and wand emulation. Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces |
Imaging Characteristics | |
Graphics Format Support | Images can be exported as Bitmap, JPEG, and TIFF (requires the hands-free presentation cradle) |
Image Quality | 120 DPI on a 4 in. x 6 in. (10.2 x 15.2 cm) document @ 6.5 in./16.5 cm |
Radio Specification | |
Radio | Bluetooth™, Class 1, Version 2.1 + EDR, Adaptive Frequency Hopping (enables co-existence with 802.11 wireless networks), serial port & HID profiles; data rate — up to 3 Megabits/sec |
User Environment | |
Drop Spec | Drop Specifications Withstands multiple 6 ft./1.8 m drops to concrete |
Operating Temp. | 32° F to 122° F/0° C to 50° C |
Storage Temp. | -40° F to 158° F/-40° C to 70° C |
Sealing | IP43 |
Humidity | 5% to 95% relative humidity, noncondensing |
Regulatory | |
EMI/RFI | EMI/RFI FCC Part 15 Class B, ICES-003 Class B, CISPR 22, CISPR 24; Medical electrical equipment: EN60601-1-2: 2002. |
Electrical Safety | UL6950-1, CSA C22.2 No. 60950-1, EN60950-1/ IEC60950-1 |
Laser safety | EN60825-1:1994 +A1: 2002 +A2: 2001, IEC60825-1, 21CFR1040.10 and 21CFR1040.11, CDRH Class II, IEC Class 2 |
Environmental Compliant | RoHS directive 2002/95/EEC |
