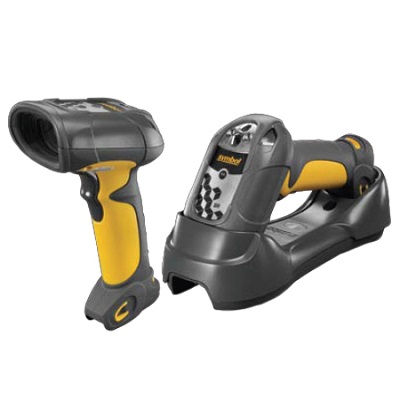

Barcode Scanner LS3578-FZ
The LS3578-FZ rugged bar code scanner features fuzzy logic technology, which allows first-pass reads of nearly any 1D bar code, even when the bar code is dirty or damaged.
Integrated Bluetooth®guarantees reliable and secure wireless data transmission between the scanner and host. The wide working range allows operators to move freely without being restricted by a cord. A rugged, drop-resistant design and a sealed housing provide reliability with less accident-related equipment failure and downtime.
Download Attached File:
Features and Benefits
Fuzzy logic decoding
Scans all 1D bar codes on first scan, including poorly printed, dirty, damaged or low-contrast ones.
Integrated Bluetooth®
Ensures secure wireless data transmission.
Cordless handheld functionality
Enables real-time bar code data collection unrestricted by a cable, reducing repairs from cable failure.
Rugged design
Withstands multiple 6.5-ft (2-m) drops onto concrete, with less downtime from accidental drops.
IP65-rated seal
Protects against water and dust for reliable performance in the harshest environments.
Bright LED and beeper with adjustable volume
Makes decode feedback is consistently visible and audible to users, even in noisy environments.
Multi-point communication
Allows use of up to three scanners with a single cradle.
Bright 650-nm laser aiming dot
Delivers clear, visible line for more accurate scanning.
Supports GS1 DataBar
Ensures compatibility with emerging symbologies.
Advanced data formatting
Eliminates costly modifications to the host software.
Batch mode operation
Increases application design flexibility.
Remote scanner management
Enables you to discover, provision and upgrade devices from a central remote location.
| Physical Characteristics | |
| Dimensions | 7.34 in. L x 4.82 in. W x 2.93 in. D (18.65 cm H x 12.25 cm W x 7.43 cm D) |
| Battery | 2200 mAh Lithium Ion Battery |
| Color | Twilight Black and Yyellow |
| Weight (Including Battery) | 14.6 oz. (414 gm) |
| Operating Characteristics | |
| Scan Pattern | Retrocollective |
| Light Source | 650nm laser diode |
| Cradle Interface | RS232, Keyboard Wedge, IBM 468X/469X, USB and Synapse |
| Scan repetition | 36 scans per second |
| Roll | +/- 20o |
| Pitch | +/- 65o |
| Yaw | +/- 50o |
| Decode Capability | UPC.EAN, UPC.EAN with Supplemental, GS1-128 (formerly UCC/EAN 128), JAN 8 & 13, Code 39,Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, GS1DataBar (formerly RSS). |
| Radio Specification | |
| Radio | Bluetooth, Class 2, Version 1.2, Serial port and HID Profiles |
| Data Rate | 720 kbps |
| Radio Range | Up to 300 ft. (100m) direct line of sight in open air; typical indoor cordless range is 100 ft. (33m), but will vary depending upon environment; see Bluetooth Radio Performance Technical Brief for more information |
| User Environment | |
| Drop Spec | Drop specifications: Unit functions normally after 50 drops to concrete from 6.5 ft. (2m) |
| Operating Temp. | -4˚ to 122˚F (-20˚ to 50˚C) |
| Storage Temp. | -40˚ to 140˚F (-40˚ to 60˚C) |
| Sealing | Sealed to IP65 specifications |
| Humidity | 5% to 95% relative humidity, noncondensing |
| Regulatory | |
| EMI/RFI | EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Japan CCI/MITI/Dentori |
| Laser safety | IEC825-1 Class |
