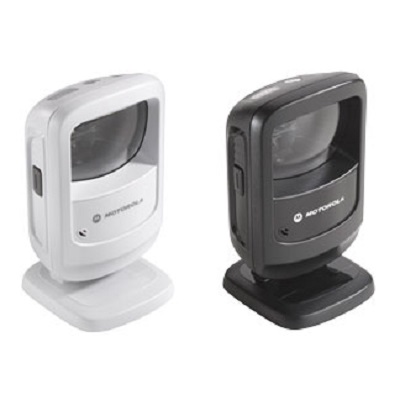

Barcode Scanner DS9208
Whether you need to scan printed bar codes on paper labels or mobile bar codes on the screen of a mobile phone, with the Motorola DS9208, you’ll be ready. You get the versatility to scan any 1D or 2D bar code — from the printed labels in retail that identify product and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets. And the DS9208 provides all the features you need to keep your workers productive: industry-leading scanning speed; true point-and-shoot scanning simplicity — no need to align bar code and scanner; and hands-free and handheld flexibility.
Download Attached File:
Features and Benefits
Scans 1D, 2D and PDF417 bar codes on paper, mobile phones and computer displays
Scan virtually any bar code on any medium; supports the technology your customers are embracing — mobile bar codes
Sleek design and small footprint
Perfect in the most design conscious environments; most compact device in its class, fits in the most space constrained areas
Handheld and hands-free modes
Dual mode functionality saves time; keeps lines moving; reduces the need to lift heavy items
Picklist mode
Select and scan a single bar code from a bar code menu or “picklist” — ideal for items that are too small for bar code labels
Driver’s license parsing (optional)
Captures information from driver’s licenses, enabling fast auto-population of loyalty and credit card applications, increasing enrollment
Multi-code mode
Allows simultaneous scanning of a group of bar codes and reports only the selected bar code(s) in a pre-selected order
Industry-first spherical exit window
Improves scanning performance by minimizing stray light and reducing reflections to the imaging sensor
Omnidirectional scanning; supports all common interfaces
Eliminates the need to align bar code and scanner; easy integration into current or future environments
5 ft./1.5 m drop spec and recessed exit window
Increased durability; prevents nicks and scratches that could degrade performance
Compatible with 123Scan2 and Remote Scanner Management (RSM)
Reduces management time and cost, from initial configuration to day-to-day management
Physical Characteristics | |
Dimensions | 5.512 in. H x 3.232 in. W x 3.150 in. D 14.0 cm H x 8.21 cm W x 8.0 cm D |
Voltage & Current | Idle: 5 ± 10% VDC @ 150ma average Scanning: 5 ± 10% VDC @ 230ma average |
Weight (w/o cable) | 9.5 oz./269 g |
Power Source | PC host/ external source |
Operating Characteristics | |
Technology | Digital Image |
Scan Pattern | 1D/2D barcode |
Image of Field View | 46° (H) x 29.5° (V) |
Light Source | Aiming pattern: 625 nm LED Illumination: 630 nm LEDs |
Interfaces Supported | USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge |
Roll | 360o |
Pitch | +/- 65o |
Yaw | +/- 60o |
Decode Capability | 1D: UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) 2D: TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro) PDF417 (and variants): PDF417 (Standard, Macro), MicroPDF417 (Standard, Macro), Composite Codes (CC-A, CC-B, CC-C) Postal: U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB |
Minimum Resolution | Code 39 – 4 mil UPC – 7.8 mil (60%) PDF417 – 5 mil Datamatrix – 7.5 mil QR Code – 7.5 mil |
User Environment | |
Drop Spec | Withstands multiple 5 ft./1.5 m drops to concrete |
Sealing | IP50 |
Humidity | 5% to 85%, non-condensing |
Operating Temp. | 32° F to 104° F (0° C to 40° C) |
Regulatory | |
Electrical Safety | UL6950-1, CSA C22.2 No. 60950-1:2nd ed., EN60950-1: 2nd ed. + A11: 2009, IEC60950-1: 2nd ed. |
LED Safety | IEC / EN 60825-1: 2001 Class 1M LED, EN 62471: 2008, IEC 62471: 2006 |
EMI/RFI: | FCC CFR47 Part 15 Class B: 2007, ICES-003 Issue 4 :2004 Class B, EN 55022: 2006 + A1: 2007, EN 55024: 1998 +A1: 2001 + A2: 2003, AS/NZS CISPR22:2006, VCCI:2007 |
Environmental | Compliant with RoHS Directive 2002/95/EC |
