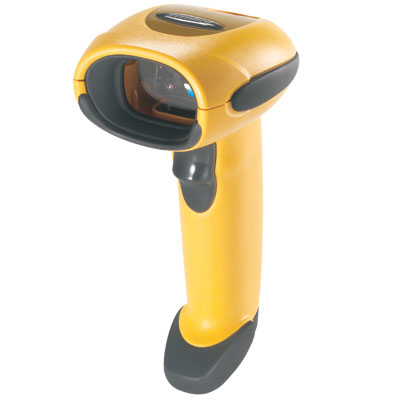

Barcode Scanner LS3008

The Symbol LS3008 rugged handheld scanner has a lightweight ergonomic design for superior productivity in light industrial, healthcare and retail environments. Designed to deliver maximum reliability and uptime, the single-board construction eliminates multiple circuit boards and connecting ribbon cables — the most common point of failure in scanners.

A multi-line rastering scan pattern eliminates the need for exact aim and positioning and a wide working range allows easy scanning. Liquid Polymer Scan Technology eliminates friction and wear, and superior motion tolerance reduces fatigue and increases productivity.

Download Attached File:

Datasheet_LS3008_EN_New.pdf

Single-board construction

Eliminates the most common point of failure: ribbon cables between multiple circuit boards.

IP53 sealing

Allows safe wipe-down and sanitization for clean manufacturing and hospital environments.

Wide working range, from 0 to 19 inches

Enables comfortable, intuitive scanning.

Effortless scanning of small bar codes

Reads symbols as small as 3 mil.

Scratch-resistant tempered glass exit window

Delivers continuously reliable scanning.

Superior motion tolerance

Enables scanning of bar codes in rapid succession, reducing fatigue.

Multi-line rastering scan pattern

Eliminates need for exact aim and positioning, capturing even tiny, stacked or poorly printed bar codes.

Multiple onboard interfaces including RS232, USB and keyboard wedge (KBW)

Simplifies integration while ensures compatibility with host/POS.

Remote Scanner Management (RSM) support

Discover, provision and upgrade devices from a central remote location.

Optional Intellistand

Toggles between hands-free and handheld modes for maximum productivity and comfort.

Liquid Polymer Scan element, with lifetime warranty

Eliminates friction and wear for superior durability and reliability.

PERFORMANCE CHARACTERISTICS

Interfaces supported
IBM, Keyboard wedge, RS-232, Synapse, USB, Wand

Decode capability
1D, See data sheet for full list of supported symbologies

Scan pattern
Single line

Technology
Laser

Depth of field

0 to 19 in. (0 to 48.25 cm) on 13 mil (100% UPC/EAN)

PHYSICAL CHARACTERISTICS

Dimensions
6.7 x 3.7 x 2.7 in. (17 x 9.3 x 6.8 cm) H x W x D

Voltage and current²
5 +/- 10% VDC @ 140 mA (Stand by: <35 mA)

Power source
Host power or external power supply (depends on host type)

Handheld
Yes

Weight
6.4 oz. (181 g)

Color
Twilight black, Yellow

Corded
Yes

REGULATORY SPECIFICATIONS

Electrical Safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Laser/LED Safety
EN 60825-1, IEC 60825-1, 21CFR1040.10

EMI/RFI
EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3

Environmental
RoHS Directive 2002/95/EEC

USER ENVIRONMENT

Operating temperature
32° to 122° F (0° to 50° C)

Drop specifications
Withstands multiple 6.5 ft./2 m drops to concrete at room temperature; 6 ft/1.825 m drops to concrete at all other operating temperatures

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)
