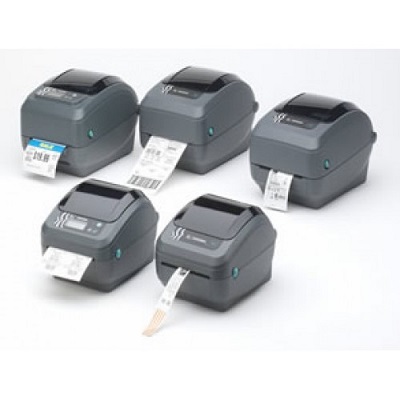

Desktop Barcode Printer G series
The best-in-class GX thermal transfer printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries.
The G series comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the reliable G series desktop printer is a smart investment that’s always a perfect fit.
Download Attached File:
Print methods: Thermal transfer/direct thermal
Dual-wall reinforced plastic construction
8MB SDRAM, 4MB Flash
Resolution: 203dpi, 300dpi
OpenACCESS design for easy media loading
Quick and easy ribbon loading system
Interface Parallel, USB 2.0, RS-232 serial ports
Transmissive sensor and Reflective sensor
LCD display
Auto-calibration
Auto-ranging (100–240 VAC) power supply
Programming languages with ZPL, EPL
Physical Characteristics | |
Dimensions | Direct Thermal: 6.0 in. H x 6.75 in. W x 8.25 in. D 15.2 cm H x 17.1 cm W x 21.0 cm D Thermal Transfer: 7.5 in. H x 7.6 in. W x 10.0 in. D 19.1 cm H x 19.3 cm W x 25.4 cm D |
Voltage | 100 – 240 VAC; 50 – 60 Hz |
Color | Color-coded |
Weight (w/o cable) | Direct Thermal: 3.0 lbs/1.4 kg Thermal Transfer: 4.6 lbs/2.1 kg |
Operating Characteristics | |
Resolution | 203dpi, 300dpi (only GX430) |
Print Width | 4.09"/104 mm |
Ribbon Length | 274'/74 m |
Print methods | Thermal transfer/Direct Thermal |
Print Speed | GK420™: 5"/127 mm /s GX420™: 6"/152 mm /s GX430™: 4"/102 mm /s |
Memory | Standard: 4 MB Flash, 8 MB SDRAM Optional: Factory Installed 64 MB Flash |
Interfaces Support | RS232, USB 1.1, Parallel |
Bar Code Symbologies | Linear Bar Codes: Code 11, Code 39, Code 93, Code 128 subsets A/B/C and UCC case C codes, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digit extensions, Plessy, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code, RSS 2-Dimensional: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS |
User Environment | |
Storage Temp. | -40º F/-40º C to 140º F/60º C |
Operating Temp. | 40° F/4.4° C to 105° F/41° C |
Environmental | Compliant with RoHS |
