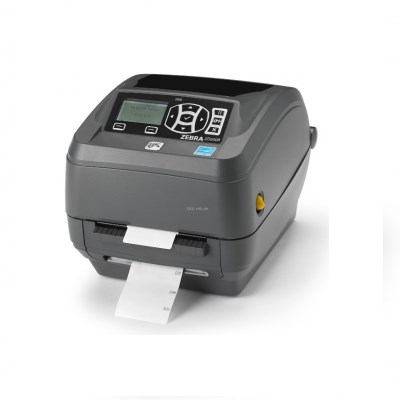

PERFORMANCE DESKTOP PRINTERS Zebra GD500

Zebra’s G-Series™ GX™ and ZD500™ printers pair the fastest print speeds with the most complete feature set of our desktop printer lineup.  Innovative label, receipt and tag-handling capabilities enable the flexibility you need.  Offering top print quality and a variety of connectivity options, the GX420™, GX430™ and ZD500 printers support the widest range of applications and can be integrated into almost any environment so that you can improve efficiency and profitability, save time and reduce operator training.

  • Tool-less printhead and platen replacement

  • OpenACCESS™ for easy media loading

  • Quick and easy ribbon loading

  • Simplified calibration of media

  • Quad connectivity: USB, Parallel, Serial, and Ethernet

  • Real-time clock

  • LCD User Interface

  • Zebra E3 Printhead Energy Control

  • ENERGY STAR® qualified

  • Link-OS™enabled

  • Print Touch™ app

  • Unicode compliant for multi-language printing

  • 16 resident expandable ZPL II® bitmap fonts

  • Two resident scalable ZPL fonts

  • Auto-switching 100-240V power supply

  • Head-up sensor

  • Standard tear-off mode feature

  • 3" media core adaptor

  • Zebra printer drivers for Windows™

Resolution:

  • 203 dpi (8 dots/mm)

  • 300 dpi (12 dots/mm) optional

 Memory:

  • 128 MB Std SDRAM memory (4 MB available to user)

  • 256 MB Std Flash memory (56 MB available to user)


Print length:

  • 39" (990 mm) maximum


Programmable print speeds of 2, 3, 4, 5, & 6 ips (51, 76, 102, 127, & 152 mm/s)

Media sensors:

  •  Full width reflective and multiposition transmissive sensors

Media Characteristics

Maximum label and liner length: 39"/990 mm (maximum non-continuous)

Maximum label and liner width: 0.75"/19 mm to 4.25"/108 mm

Label Length:

  • Minimum using tear off mode: .25" (6.3 mm)

  • Minimum with label present sensor used - 0.50" (12.7 mm)

  • Minimum with cutter - 1.0" (25.4 mm)

Maximum media roll size: 5"/127 mm O.D.

Media thickness: 0.003"/0.08 mm to 0.012" (0.305 mm)

Media types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands

Ribbon Characteristics

Outside diameter: 1.36"/35 mm
Standard length: 244'/74M
Ratio:  1:1 media to roll to ribbon
Width:  1.33"/33.8 mm to 4.3"/109.2 mm
Core inner diameter: 0.5"/12.7 mm

Environmental

Storage Temperatures: -40° F/-40° C to 140° F/60° C

Physical Characteristics

Width:  7.6"/193 mm
Height: 7.5"/191 mm
Depth: 10.0"/254 mm
Weight: 4.9 lbs/2.2 kg

Barcodes/Symbologies

  • Barcode Ratios: 2:1 (non-rotated) and 3:1

  • Linear Bar Codes: Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, EAN-14, UPC-A and UPC-E with EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, and GS1 DataBar (formerly RSS)

  • 2-Dimensional: PDF417, MicroPDF-417, Code 49, Maxicode, Codablock, Data Matrix, QR code, Aztec

Options and Accessories

  • 300 dpi print resolution printing for fine detail and crisp images

  • Wireless—802.11 a/b/g/n and Bluetooth 3.0

  • Dispenser—label peel and present with present sensor

  • Cutter for various media types

  • RFID encoding available

  • ZKDU and KDU Plus™ keyboard display for stand-alone printing solutions
