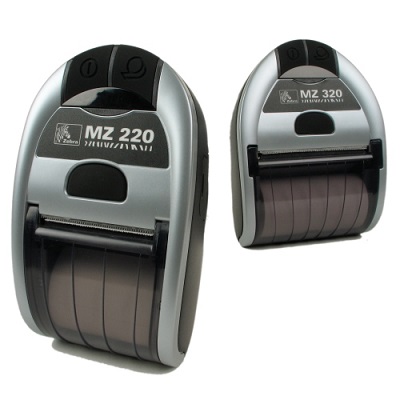

Mobile Printer MZ Series
Zebra brings you the world’s first mobile thermal transfer printer . With the MZ series, you can print long-life bar code labels and documents up to 4" wide that withstand harsh and outdoor enivronments. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, center-loading media and large memory, the MZ series boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don’t let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The MZ series serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and field service.
Download Attached File:
Print methods: Direct transfer
Dual-wall reinforced plastic construction
Print speed 3” /76.2 mm per second
8MB RAM, 4MB Flash
Resolution: 203dpi
OpenACCESS design for easy media loading
Quick and easy ribbon loading system
Interface IrDA, USB 2
Auto-calibration
1.5 Ah Li-Ion battery
Physical Characteristics | |
Dimensions | MZ220: 5.34 in. H x 3.18 in. W x 2.26 in. D 13.56 cm H x 8.80 cm W x 5.74 cm D MZ320: 5.34 in. H x 4.11 in. W x 2.26 in. D 13.56 cm H x 10.40 cm W x 5.74 cm D |
Power | Pin 1.5Ah Li-Ion |
Color | Color-coded |
Weight (w/o cable) | MZ220: 0.70 lbs/0.32 kg MZ320: 0.75 lbs/0.34 kg |
Operating Characteristics | |
Resolution | 203dpi |
Print Width | MZ220: 1.9"/48.3 mm MZ320: 2.9"/73.7 mm |
Print methods | Direct Thermal |
Print Speed | 3"/76.2 mm /s |
Memory | Standard: 4 MB Flash, 8 MB RAM Optional: Factory Installed 64 MB Flash |
Interfaces Support | USB 2.0, IrDA |
Bar Code Symbologies | Linear Bar Codes: Code 39, Code 93,UCC/EAN128,Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 & 5 digit add-on, EAN-8, EAN-13, EAN14, 2 & 5 digit add-on Dimensional: Aztec, Maxicode, PDF-417, QR-Code, GS1 DataBar™(RSS) family *Contains UFST® from Monotype Imaging, Inc. |
User Environment | |
Storage Temp. | -4º F/-20º C to 140º F/60º C |
Operating Temp. | 14º F/-10º C to 122º F/50º C |
Environmental | Compliant with RoHS |
