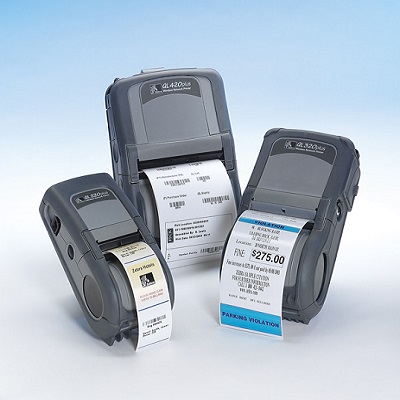

Mobile Printer QL Series
The compact, lightweight QL Plus Series direct thermal mobile printer delivers print widths up to QL 220: 1.89” (48 mm), QL 320: 2.9” (73.6 mm), QL 420: 4.09” (103.9 mm). In addition to offering the rugged construction, user-friendly options, and flexible QuickLink connectivity that have made Zebra’s QL Plus Series and other QL series printers so popular, the enhanced QL Plus printer is specially designed for complex mobile printing applications. It’s built to handle increased levels of wireless security and to process complex labels up to four times faster, making it ideal for the secure transfer of sensitive data such as price lists, customer information, and medical records.
The QL Plus Series is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery an verification, and for mobile point of sale at boutique stores.
Download Attached File:
Benefits
Accommodates situations real-time and at the point of application
Offers a rugged, lightweight mobile solution
Connects to a wider variety of terminals
High speed processor for complex printing applications
Physical Characteristics | |||
Dimensions | QL220: Width: 3.57”/90.7 mm Depth: 2.96”/75.2 mm Height: 7.15”(w/o belt clip) /181.6 mm | QL320: Width: 4.6”/116.8 mm Depth: 3.1”/78.7 mm Height: 8.0”/203.2 mm | QL420: Width: 6.0”/152.4 mm Depth: 3.0”/76.2 mm Height: 7.5”/190.5 mm |
Battery | 7.4V Lithium ion (2.1 Ah) | 7.4V Lithium ion (2.1 Ah) | 7.4V Lithium ion (4.2 Ah) |
Media Spec. | 0.63”/16.0 mm to 2.18”/55.4 mm | 1.25”/31.75 mm to 3.12”/79.2 mm | 2.0”/50.8 mm to 4.12”/104.6 mm |
Weight (with battery) | 1.04 lbs./0.47 kg | 1.65 lbs./0.748 kg | 2 lbs./0.907 kg |
Operating Characteristics | |||
Resolution | 203 dpi | ||
Print Width | 1.89” (48 mm) | 2.9” (73.6 mm) | 4.09” (103.9 mm) |
Print methods | Direct thermal | Direct thermal | Direct thermal |
Print Speed | 3”/76.2 mm /s | 4”/101.6 mm / s | 3”/76.2 mm / s |
Memory | 16 MB RAM; 8 MB Flash | ||
Interfaces Support | Wireless security features (i.e. VPN or WPA/WPA2); 8 pin din (RS232C); Selectable baud rate: 9600 to 115.2 Kbps; Xon/Xoff or Hardware flow control; Bluetooth option; Wireless LAN (802.11b/g); USB 2.0 | ||
Bar Code Symbologies | Linear Bar Codes: Code 39, Code 93, Code 128; Codabar; Interleaved 2-of-5; FIM Postnet; UPC-A, UPC-E, 2 & 5 digit add-on; EAN-8, 13, 2 & 5 digit add-on; MSI/Plessey; UCC/EAN 128• 2-Dimensional: Aztec, Data Matrix, GS1 DataBar™ (RSS) family (12 bar codes), MaxiCode, PDF417, QR Code. | ||
User Environment | |||
Storage Temp. | -13º F/-25º C to 158ºF/70oC | ||
Operating Temp. | 5º F/-15º C to 122º F/50ºC | ||
Water Resistant | IP14 standards and IP54 rated with optional soft |
