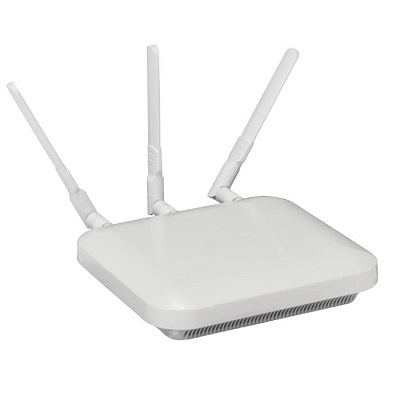

AP 7532 ACCESS POINTS
Finally — maximum 802.11ac speed at an affordable price point. Now you can deliver dependable blazing desktop-style wireless speed to all your users on all their devices and all their applications with the AP 7532 access point. You get a comprehensive feature set, 3X3 MIMO and high-powered radios that mean you’ll need fewer access points, driving costs down even further. And with its sleek, understated look, the internal antenna version of the AP 7532 is at home anywhere in your environment — including customer-facing public spaces.
802.11ac Wi-Fi Access Point: 3x3 MIMO with three spatial steams
Three spatial streams plus 256 QAM modulation support on both the 2.4 GHz and 5 GHz radios deliver the maximum throughput needed to support virtually any enterprise application, including voice and HD video. Plus the AP 7532 works in conjunction with beamforming to boost range.
Power by standard 802.3af
The AP 7532 simplifies and reduces customers' total cost of installation using Power-over-Ethernet (PoE).
Dual radio 802.11ac/802.11n
The AP 7532's dual radio capability provides an easy upgrade path to 5th generation Wi-Fi for unmatched performance and capacity, along continuing support for all existing Wi-Fi client devices (2.4 GHz/5 GHz).
Load balancing, preemptive roaming, and rate scaling
With the AP 7532, customers gain a new standard of increased reliability and resilience with their wireless network for better support of mission-critical applications.
Aesthetics for every inch of any environment
Customers can opt for the internal antenna for a sleek look in public areas where aesthetics are important. External antennas can be chosen when there is a need for flexibility to cover challenging areas.
Radio share and off-channel scan
These features provide unmatched flexibility, allowing a single AP 7532 to perform double duty as both an access point and a sensor.
Antenna specifications
Connector type
Three RP SMAs (External only - AP-7532-67040-xx)
Physical characteristics
Housing
Plenum-rated housing (UL2043)
Weight
1.8 lbs / 0.82 kg
LEDs
2 top-mounted LEDs; activity indication
Dimensions (HxWxD)
1.6 in. H x 6.5 in. W x 7.1 in. L / 41 mm H x 165 mm W x 180 mm L
Power specifications
Integrated power over ethernet support
802.3af
Operating voltage
48v
Operating current
312 mA at 48 V
Radio specifications and networking
Operating channels
2.4 GHz band: channel 1 through channel 13 5.2 GHz band: channel 36 through channel 165 * Channel availability depends on local regulatory restriction
Frequency
2412 to 2484 MHz, 5180 to 5850 MHz
QoS
WMM, WMM-UAPSD, 802.1p, Diffserv and TOS
Layer 2 and Layer 3
Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP
Data rates supported
802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48 and 54 Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: MCS 0-23 up to 450 Mbps; Turbo mode (256 QAM) on 2.4 GHz band up to 600 Mbps 802.11ac: MCS 0-9 up to 1.3 Gbps
Wireless medium
Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) and Spatial Multiplexing (MIMO)
Security
Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS and secure guest access (hotspot)
Transmit power adjustment
1dB increment
Regulatory specifications
Electrical safety
UL 60950-1, EN 60950-1, IEC 60950-1, UL2043, cUL 60950-1, RoHS
Radio approval
FCC (USA), EU, TELEC
User environment
Electrostatic discharge
15kV air, 8kV contact (Internal AP-7532-67030-xx) 12kV air, 6kV contact (External AP-7532-67040-xx)
Operating temperature
Internal antennas: 32° F to 104° F/0° C to 40° C External antennas: -4° F to 104° F/-20° C to 40° C
Operating humidity
85% RH non-condensing
Storage temperature
-40° F to 158° F / -40° C to 70° C
