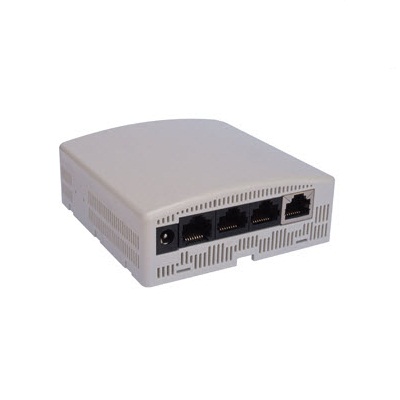

Access Point AP7502
This compact access point is 40 percent smaller than its nearest competitor, but still delivers big performance. Just 3.5” x 3.7” (90mm x 95mm), the AP 7502 can fit onto any Cat5e wall plate via the global mounting bracket, allowing you to leverage your existing infrastructure to deliver high-speed wireless LAN.
Download Attached File:
LOW-POWER DESIGN BRINGS HIGH SPEED INTERNET AND COST SAVINGS
The AP 7502 is an inconspicuous and tamper-proof access point which hides in plain sight, ideal for hotel rooms, classrooms, apartments, or dorm rooms. With 802.11n and 802.11ac radios, five internal antennas, and a host of Zebra-exclusive features, this little access point can deliver wireless LAN connectivity to each device in the room. Its understated, secure design is also energy efficient to provide superior wireless access at a lower cost.
SNAP-ON ACCESS = RAPID INSTALLATION
The AP 7502 offers easy snap-on installation to existing wall cabling. Configuration is automatic on installation and the access point supports remote management. A mounting bracket makes installation even easier and ensures the access point’s low-profile impact on room décor.
FUTURE-READY FOR LONGEVITY
Once installed, expect the AP 7502 to endure, delivering high-speed wireless access and next generation technology. Locationing support, such as Bluetooth® SMART, ensures you can deliver an excellent user experience now and in the future.
PHYSICAL CHARACTERISTICS
LEDs
2 single color status LEDs
Dimensions (HxWxD)
1.35 in. H x 3.7 in. W x 3.5 in. L / 35 mm H 95 mm W x 90 mm L; Extends into wall cavity .25 in. / 7mm
POWER SPECIFICATIONS
Operating voltage
Local 12v DC power
Integrated power over ethernet support
802.3at, 802.3af
RADIO SPECIFICATIONS AND NETWORKING
Operating channels
2.4 GHz band: 2400 - 2483.5 MHz 5.2 GHz band: 5150 - 5250 MHz, 5725 - 5850 MHz
Wireless medium
Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), Modulation and Coding Scheme, (MCS), High Throughput (HT)
Transmit power adjustment
6dBm to 15dBm per transmit chain. 1dB increments. (Actual transmit power dependent on national limits)
Frequency
2412 – 2472MHz; 5150 – 5850MHz. Actual frequency dependent on national and regulatory limits
Layer 2 and Layer 3
802.1Q, 802.1D, DHCP Server/client, BootP, PPPoE, LLDP, GRE and IPSec
Network standards
Regulatory Specifications: EN300 328, EN 301 893; CE, IC, FCC
Security
Stateful L2/L3 firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, Dedicated fulltime WIPS sensor mode, secure guest access captive portal
Data rates supported
802.11b: 1, 2, 5.5 and 11 802.11g/a: 6, 9, 12, 18, 24, 36, 48 and and 54 Mbps 802.11n: MCS 0-15 up to 300 Mbps 802.11ac: MCS 0-8 up to 867 Mbps
QoS
WMM, 802.1P, DSCP. Applied per radio, WLAN and user
REGULATORY SPECIFICATIONS
EMC
EN 55022, FCC Part 15 Class B, ICES 003 Class B, EU RoHS Directive 2011/65/EU (EN50581: 2012 Standard), EN 55024: 2003, EN 55024: 2010 + A2, EN 55024: 2010 + A1
Electrical safety
UL EU EN 60950-1 2nd Ed., ANZ RCM
Environmental
FCC 15.247, 15.407
USER ENVIRONMENT
Operating humidity
5% to 90% non-condensing
Operating temperature
32° F to 104° F/0° C to 40° C
