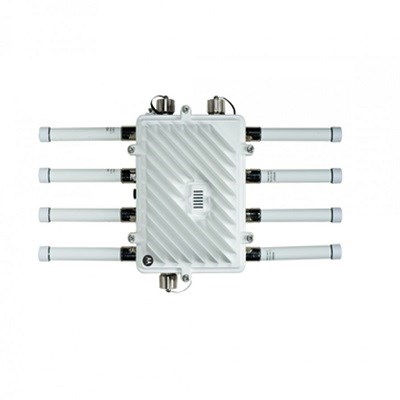

Access Point AP7161
Perfect for extending network coverage to outside areas, the AP 7161 brings the latest 802.11n 3x3 MIMO tri-radio design together with the rugged outdoor performance. True perimeter security is provided using either a dedicated dual-band sensor or software mode for both 2.4GHz and 5GHz bands to deliver 24x7 rogue detection and termination. The AP 7161 is optimized with WiNG 5 intelligence at the edge extending QoS, security, and mobility services to the access point so you get better capacity and performance. The AP 7161 is ideal for industrial , enterprise campus, video surveillance, public safety, and smartgrid utility deployments to extend to the outdoors.
The AP 7161 is a high performance, rugged 802.11n mesh access point that features 2.4 GHz and 5.0 GHz radios that support 3x3 MIMO (Multiple Input Multiple Output) technology reaching a maximum data rate of 300 Mbps.
Download Attached File:
802.11n support with 3x3 MIMO
Delivers maximum wireless network throughput to support virtually any enterprise application, including voice and video
Capacity and performance-leading Mesh deployments
AP 7161 has been optimized within the Motorola WiNG 5 platform to provide leading capacity, performance and design and is ideal for industrial and enterprise campus, video surveillance, public safety, and smartgrid utility deployments
Motorola MeshPatrol perimeter security
Extending the indoor network to the outdoors increases the need to guard against unwanted intruders and attackers, and monitor the performance and availability of mesh networks. In addition to industry standard security for clients and radio backhaul, the AP 7161 provides true perimeter security using either a dedicated dual-band sensor or software mode in 2.4GHz and 5Ghz bands. Concurrent around-the-clock dual-band Network Assurance sensing and wireless traffic is provided together with spectrum analysis — eliminating the need for separate devices. The Integrated Wireless IPS sensor option enables the configuration of one radio for 24x7 rogue detection and termination, and two others can simultaneously be dedicated to wireless client access and/or meshing. As a result, enterprises can now deploy the most robust Wireless IPS solution while saving money — the cost to purchase, deploy and manage dedicated sensor hardware is eliminated
Mesh networking
Patented Mesh Networking algorithms that allows wireless extension of existing wired or wireless networks in remote or outdoor locations
Enterprise Campus Deployments
Specifically designed to withstand wind, rain and extreme temperatures with a NEMA 4x housing to deliver enterprise-class wireless networking in harsh environments
Ideal AP7161 Applications
Industrial and warehouse operations
Public safety
Municipal and operator access
Smart Grid applications
Video surveillance applications
Extended hotspots for public access
Enterprise, education and healthcare campus facilities
Physical Characteristics | |
Dimensions | 32cm W x 22.5cm H x 10cm D 12.6in W x 8.9in H x 3.9in D |
Weight | 6.4lbs/2.9Kg |
Enclosure | Outdoor IP67 rated, corrosion resistant enclosure ASTM B117 Salt, Fog, And Rust resistance |
Available Mounting Configuration | Adaptable mounting kit for wall & pole deployments with optional extension arm accessory |
LEDs | 6 Top Mounted weatherized LEDs, with multi function read |
Uplink | Outdoor Rated N –TYPE connectors |
Antenna Connector | Outdoor Rated N –TYPE connectors |
Console Port | Outdoor rated RJ 45 Console Port |
Power Specification | |
Operating Voltage | 36-57 VDC |
Operating Current | Not to exceed 750mA @ 48VDC |
Integrated Power-Over Ethernet Support | 802.3at @ GE1 |
Radio Specifications | |
Network Standards | IEEE 802.11 a/b/g/n, 802.11e, 802.11i, WPA2, WMM, and WMM-UAPSD |
Data Rates Supported | 802.11b/g :1,2,5.5,11,6,9,12,18,24,36,48 and 54Mbps 802.11a : 6,9,12,18,24,36,48 and 54 Mbps 802.11n : MCS 0-15 up to 300Mbps |
Operating Frequency | 802.11 b/g/n: 2.4 – 2.483 GHz 802.11 a/n: 4.940Ghz – 4.990 GHz and 5.25Ghz - 5.35Ghz and 5.470GHz – 5.825GHz |
Transmit Power | 802.11 b/g/n: 26dBm 802.11 a/n: 25dBm |
802.11n Capabilities | 3x3 MIMO with 2 Spatial Streams 20MHz and 40MHz Channels Supported 300Mbps Data Rates per Radio Packet Aggregation (AMSDU,AMPDU) Reduced Interframe Spacing |
User Environment | |
Operating Temperature | -40°C to 70°C |
Storage Temperature | -40°C to 85°C |
Operating Humidity | 5 to 100% RH non-condensing |
Operating Altitude | 8,000 ft. |
Storage Altitude | 30,000 ft. |
Electrostatic Discharge | EN61000-4-2. Air +/-15kV, Contact +/-8kV |
Regulatory | |
Safety | UL 60950-1, -22; CSA C22.2 No.60950-1-07, -22 CB-IEC 60950 -1, 22; EN 60950-1:2006+ A11:2009 RoHS/WEE/CMM; CE |
Radio Approvals | FCC Title 47, part 15, part 90; EN 301 489-17 EN 301 893 v1.5.1 DFS; EN 302 502 DFS; EN 300 328; Industry Canada; China SRRC Australia/New Zeland |
