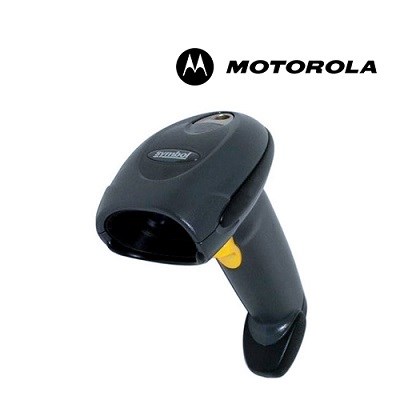

Barcode Scanner LS4208
The Symbol LS4208 handheld laser scanner delivers exceptional performance in an accesible, intuitive package. Its single-circuit board design ensures sturdiness and an ergonomic shape maximizes user comfort. Continuous one-pass scanning, an innovative multi-line rastering scan pattern, a wide working range and superior motion tolerance make data capture easy, even for novices.
This scanner comes in two models:
LS4208-SR, handles all 1D bar codes.
LS4208-PR, also capture PDF417, microPDF and composite symbologies.
Download Attached File:
1D, PDF and composite code scanning
Available in both 1D-only (SR model) and PDF/Composite (PR model) configurations.
Multi-line rastering scan pattern
Improves productivity by reducing the need to rescan bar codes or key in data.
Superior motion tolerance
Enables end users to quickly move from one bar code to the next.
Wide working range
Reads good quality as well as poor quality codes at similar ranges, reducing re-scanning.
Checkpoint Electronic Article Surveillance (EAS)
Offers dual functionality save critical counter space.
Durable construction and patented, single circuit-board design
Withstands multiple drops to concrete, minimizing downtime due to accidental drops.
Plug-and-play setup, intuitive scanning
Enables rapid deployment and immediate use without formal training.
Remote Scanner Management (RSM)
Reduces total cost of ownership by enabling remote, network-based device management.
Optional hands-free Intellistand
Enables presentation scanning, with automatic switching between hands-free and handheld modes.
GS1 DataBar bar code support
Supports the latest symbologies to future-proof your investment.
Color | Twilight black, Cash register white |
Corded | Yes |
Dimensions | 6.7 in. H x 3.7 in. L x 2.7 in. W (17 cm H x 9.3 cm L x 6.8 cm W) |
Handheld | Yes |
Power source | Host power or external power supply; depends on host type |
Voltage and current1 | 5 +/-10%VDC @ 140 mA (155 mA on PR configuration); Stand by: < 35 mA (60mAon PR configuration) |
Weight | Approximately 6.4 oz. (181 g) |
Decode capability | 1D/PDF417, See data sheet for full list of supported symbologies |
Depth of field | 0 to 19 in. (0 to 48.25 cm) on 100% UPC/EAN |
Interfaces supported | IBM, Keyboard wedge, RS-232, Synapse, USB, Wand |
Minimum resolution2 | 25% minimum reflectance |
Scan pattern | Rastering |
Technology | Laser |
EMC | EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 |
Electrical Safety | UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
Environmental | RoHS Directive 2002/95/EEC |
Laser Safety4 | EN 60825-1, IEC 60825-1, 21CFR1040.10 |
| Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions |
Drop specifications | Withstands repeated 6-ft. (1.8-m) drops to concrete |
Environmental sealing | IP43 |
Operating temperature | 32º to 122º F (0º to 50º C) |
Storage temperature | -40º to 158º F (-40º to 70º C) |
Lifetime scan element warranty | Yes |
